Plastic Film Folding Sealing Machine

Name: Plastic Film Folding Sealing Machine
Brand: XINLEI
Price: 1 USD

China Plastic Film Folding Sealing Machine wholesale

Brand Name : XINLEI

Model Number : XLGR-1400

Certification : Letters Patent

Place of Origin : JIANGYIN

MOQ : 1set

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 4 set per month

Delivery Time : 15-20 work days

Packaging Details : Wrapping Film

Voltage : 380V50-60Hz

Condition : New

Weight : 2000kg

Warranty : one year

Power : 12kw

Folding Speed : ≤400m/min

Sealing Speed : ≤300m/min

After-sales service provided : Video technical support,Online support

Dimension(l*w*h) : 2420*1600*1780mm,2450*1470*1760mm,2480*1420*1140mm

Contact Now

Plastic Film Folding And Sealing Machine High Speed

This machine adopts PLC center control,display and operation in touch screen.Unwinding drive,outfeeding rewinding are controlled by servo motor.Unwinding adopts automatic tension adjustment,photoelectric automatic correction,suitable for folding and hot side sealing for HDPE,LDPE,CPP,POF and other sheet material.

Main Technical Parameters

Material	LDPE HDPE CPP POF etc.
Unwinding Width	≤1400mm
Unwinding Diameter	≤1000mm
Rewinding Width	≤1000mm
Folding Speed	≤400m/min
Sealing Speed	≤300m/min
Power Supply	380V 50-60Hz
Total Power	12KW
Dimension	242016001780mm 245014701760mm 248014201140mm
Machine Weight	3500KG

Plastic Film Folding Sealing Machine

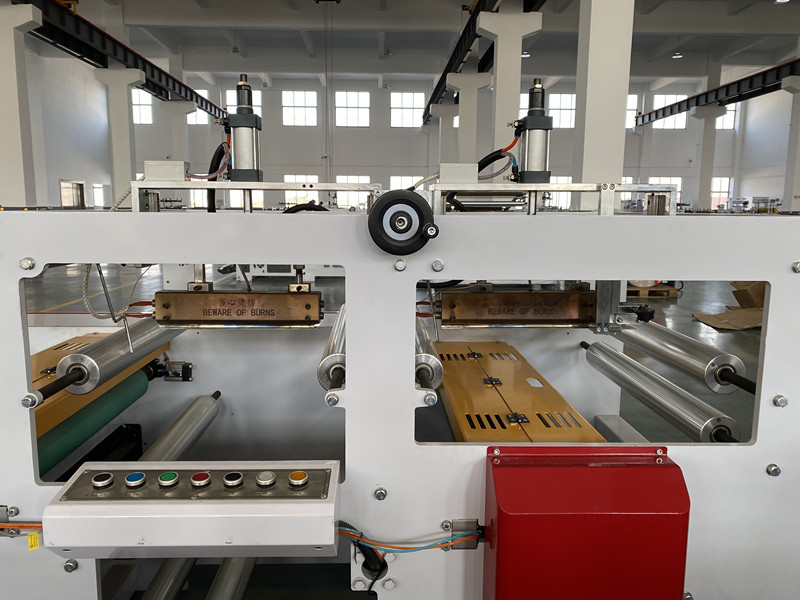

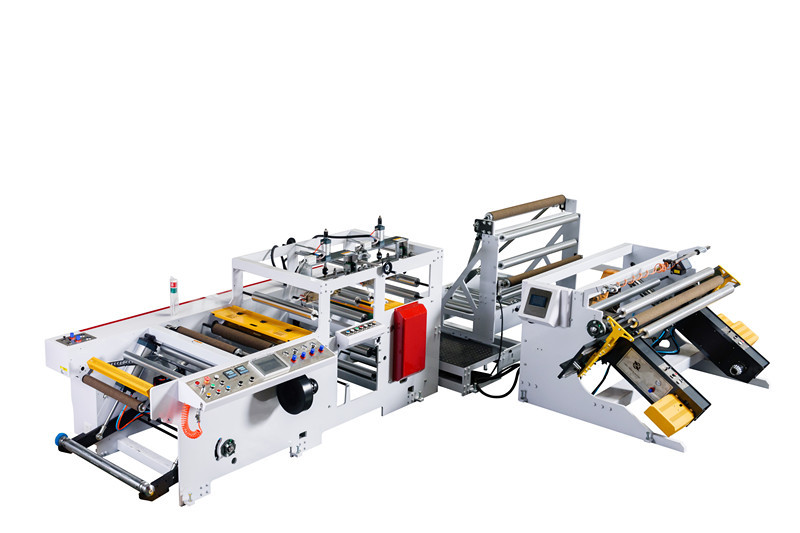

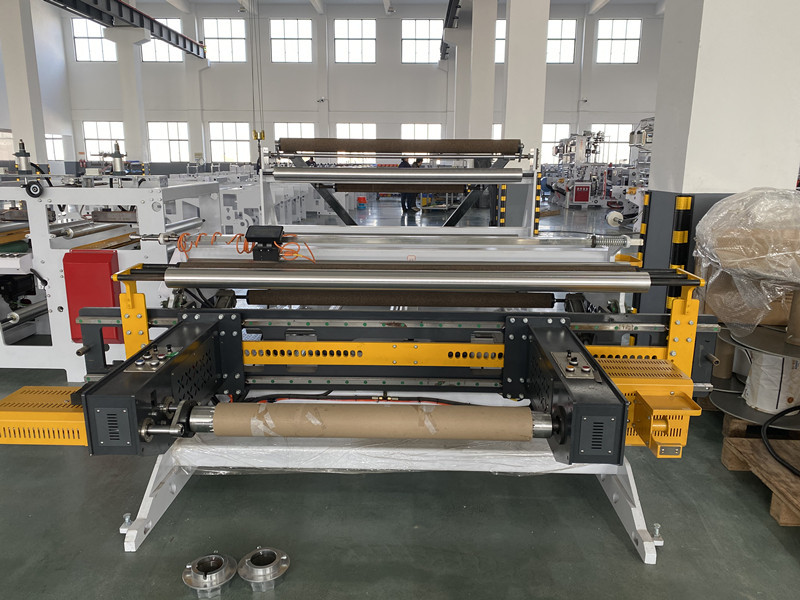

Pictures as reference

Detailed Images

Plastic Film Folding Sealing Machine
